1.Rack holding system keeps tableware stable during transportation and prevents collision.
2.Continuous conveyor operation improves washing efficiency for medium to high volume kitchens.
3.Multi-stage washing process (pre-wash, main wash, rinse, drying) ensures hygienic cleaning results.
4.High-pressure spray arms clean dishes from multiple directions.
5.Flexible rack compatibility suitable for plates, bowls, cups, trays and cutlery.
6.Energy-saving water circulation system reduces water and detergent consumption.
7.Stainless steel structure ensures durability and easy maintenance.
8.Stable conveyor drive system guarantees smooth and reliable operation.

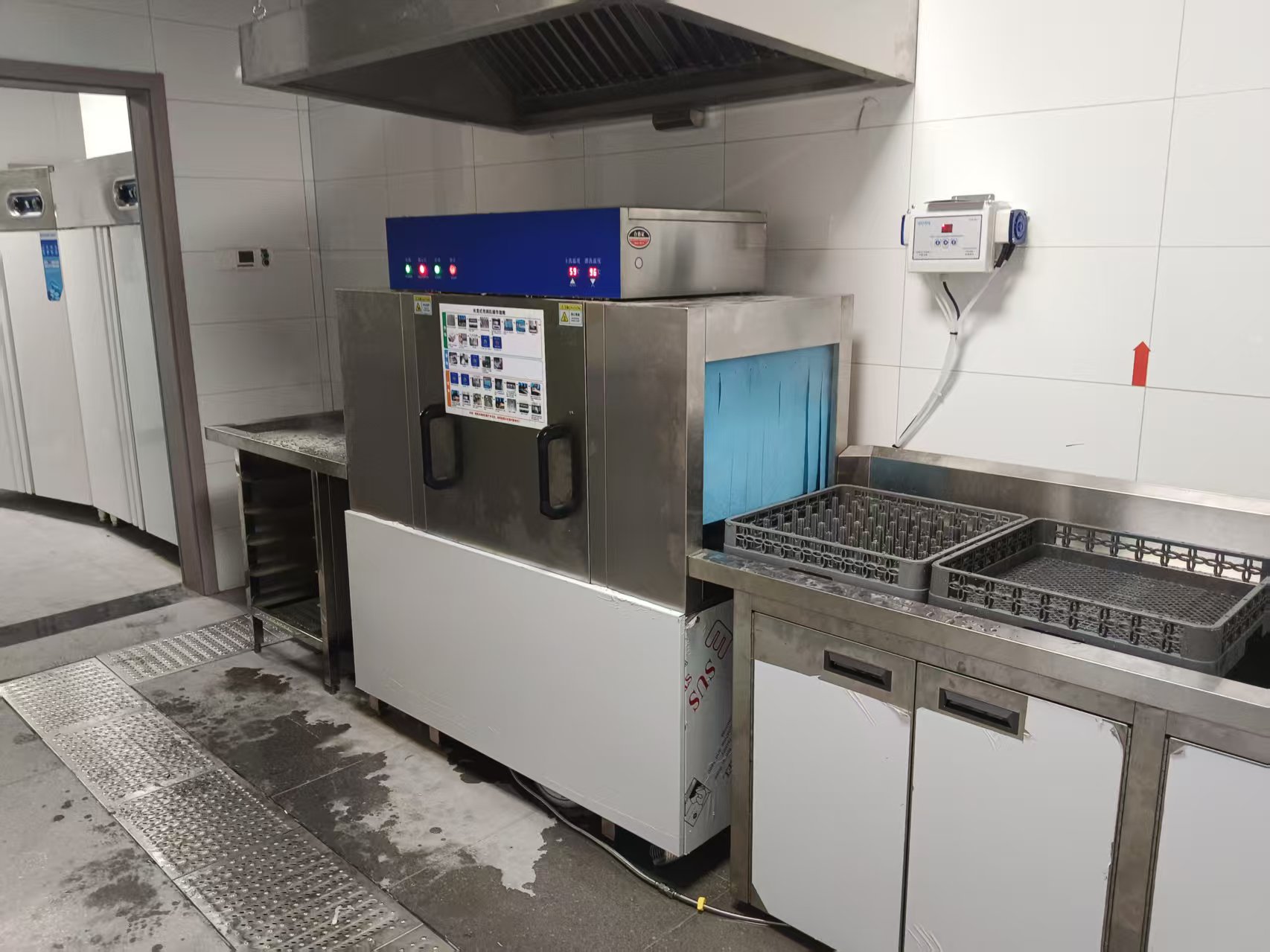

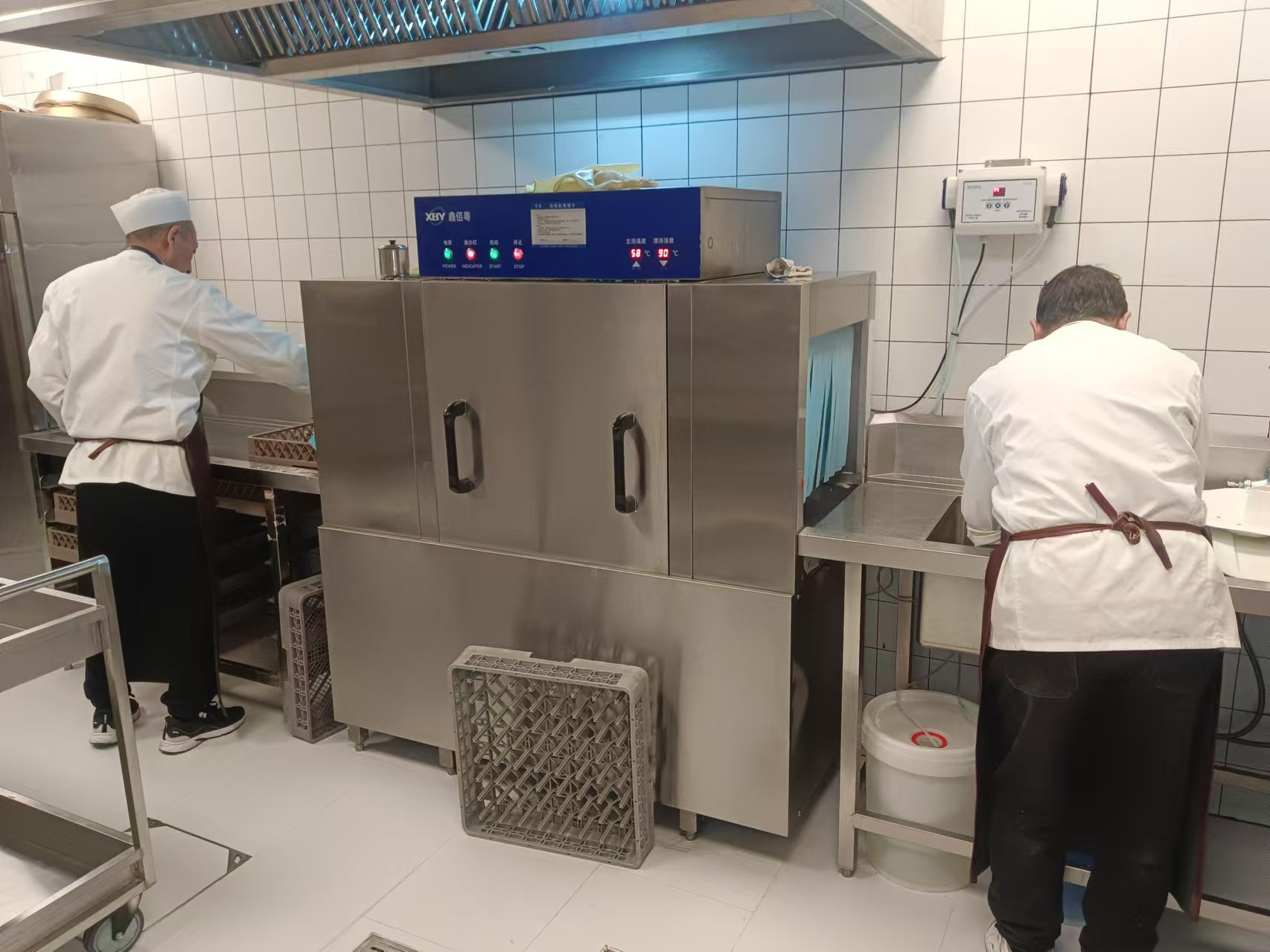

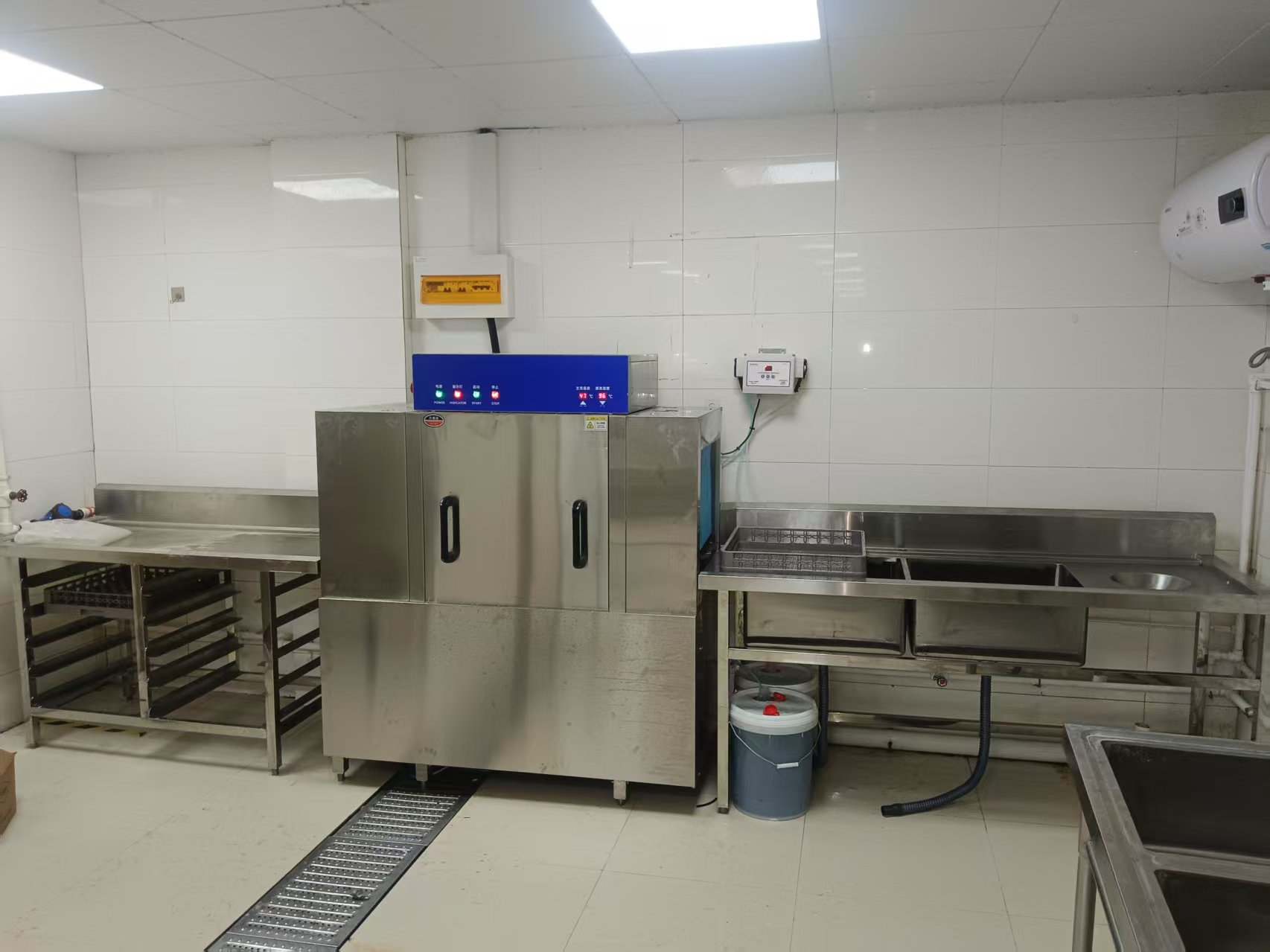

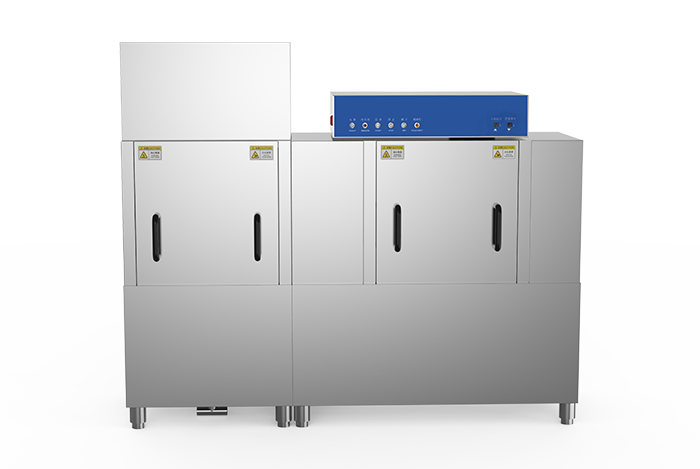

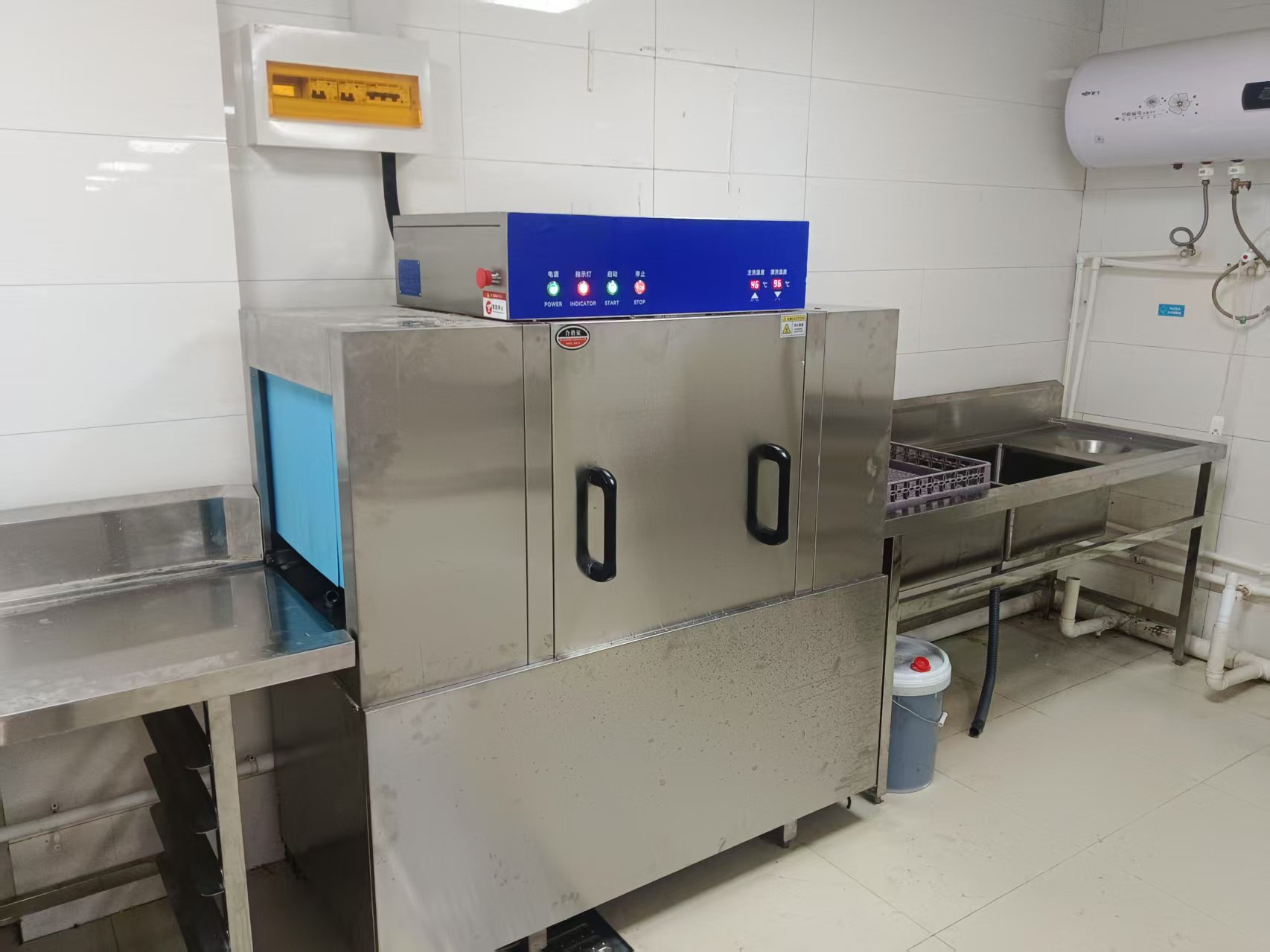

Basket Dishwasher
Basket Dishwasher
Basket Dishwasher

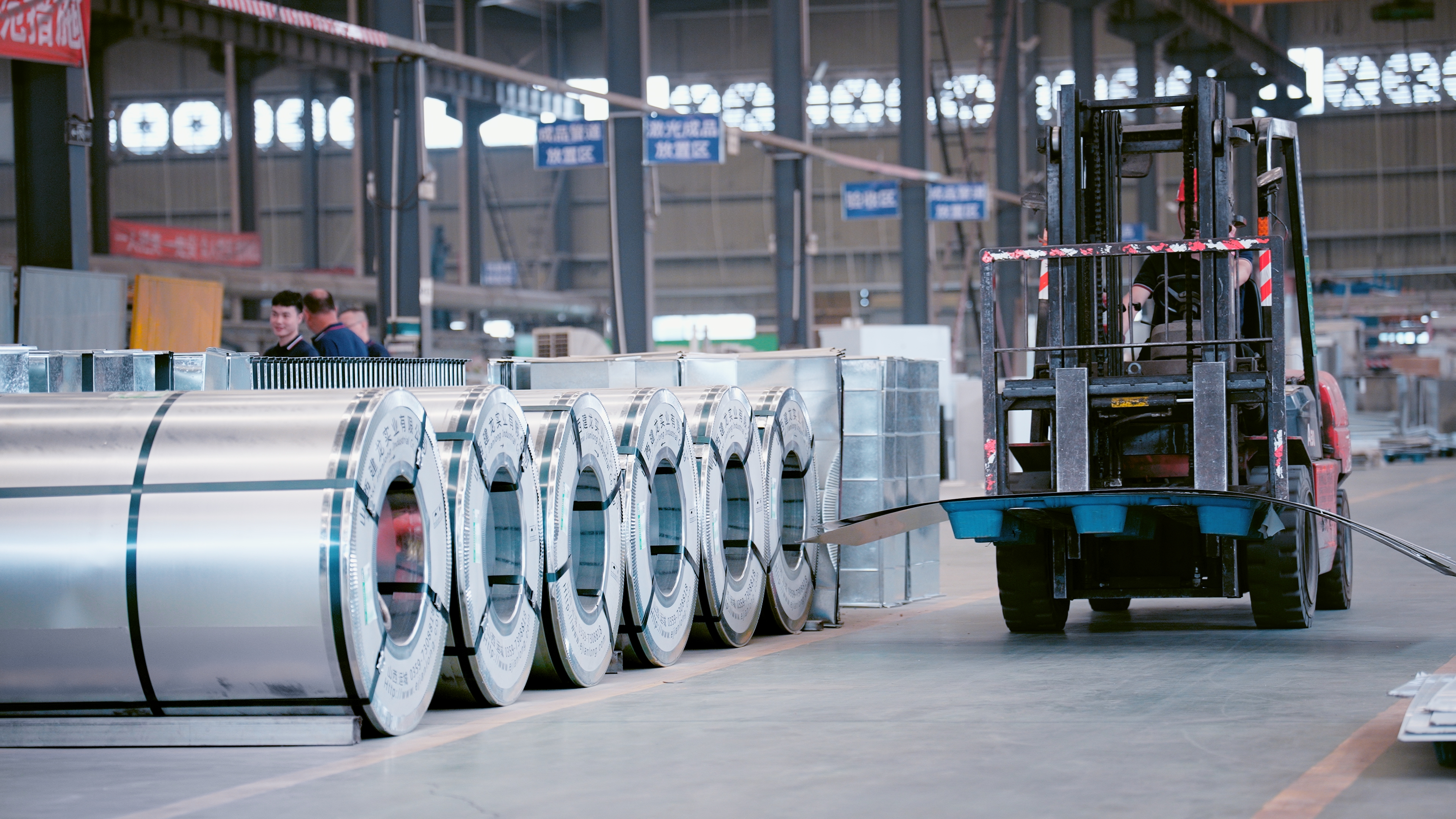

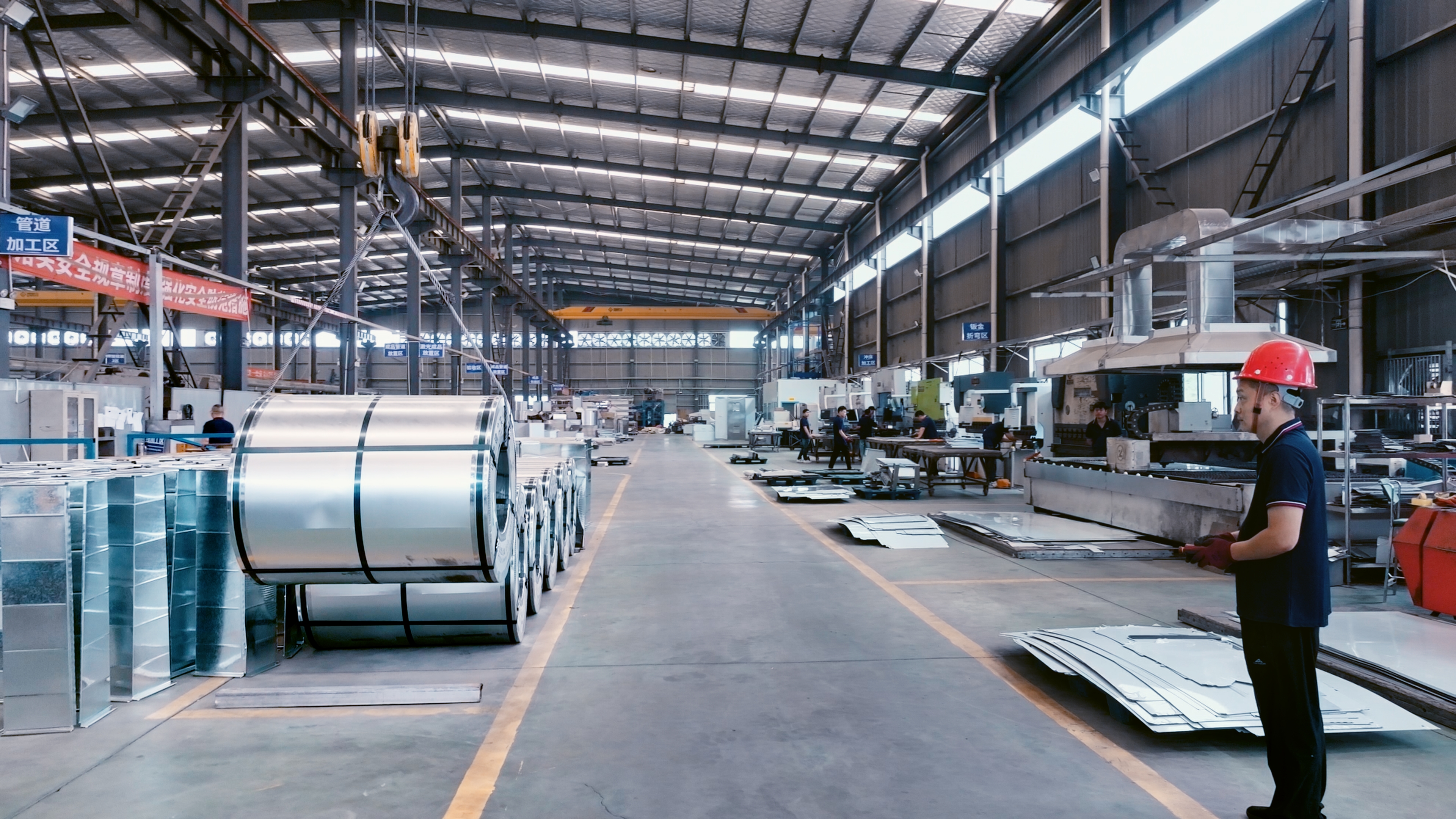

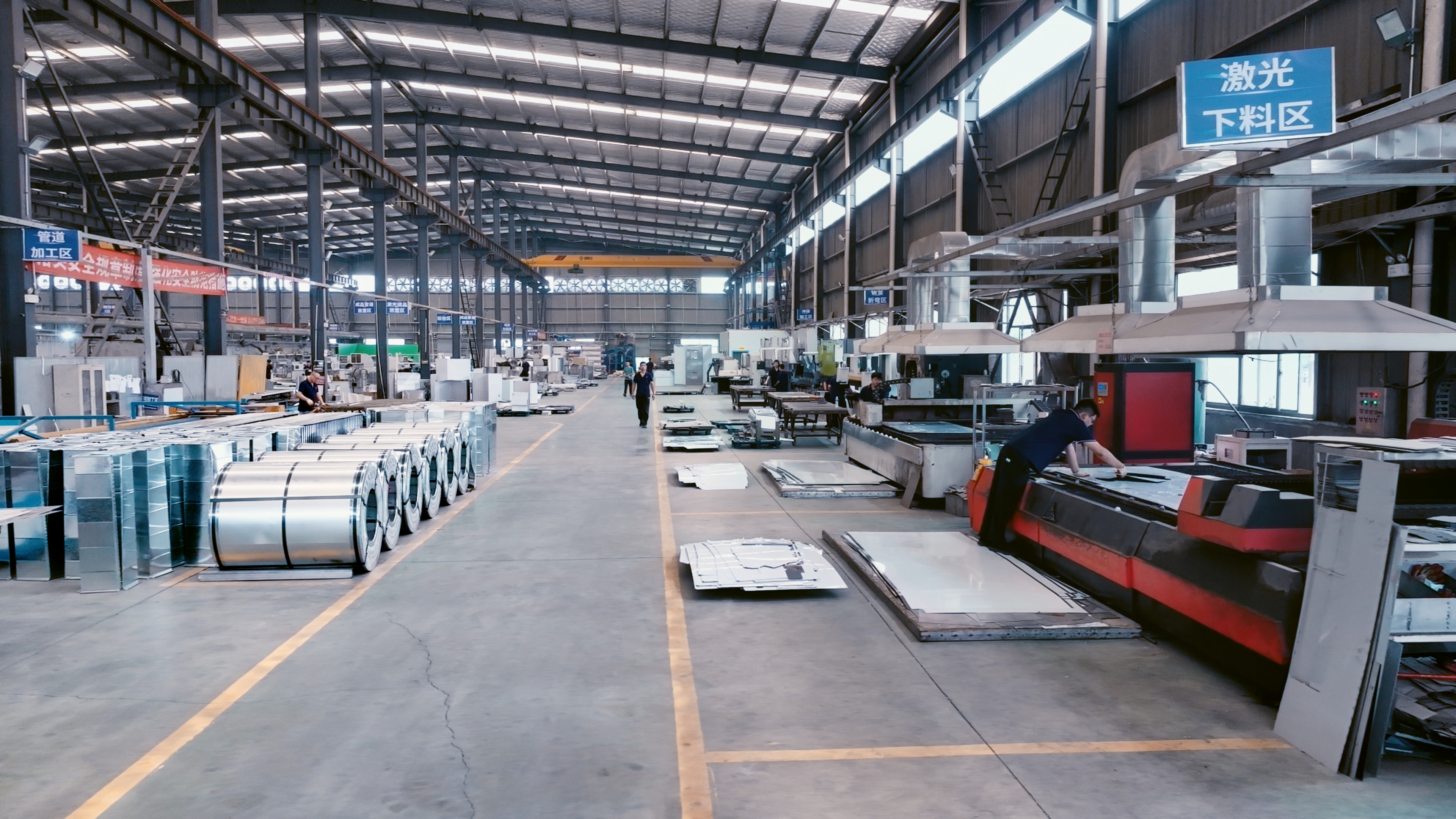

We are a professional commercial dishwasher manufacturer with a 6,000 m² factory, equipped with laser cutting machines, CNC bending machines, punching machines and laser welding machines. With strict quality control and experienced technicians, each machine is fully tested before delivery to ensure stable performance and long service life. Our engineering team continuously improves product design based on market demand. We provide flexible OEM and ODM services, including logo, structure and function customization. Our products are exported worldwide, serving distributors and project partners with reliable after-sales support.
We cooperate with experienced logistics partners to ensure stable transportation and smooth international delivery.
|
Model |
LC-1400 |
LC-1400 |
LC-2200H |
LC-2200H |
|
Heating Mode |
Electric heating |
Steam heating |
Electric heating |
Steam heating |
|
External Dimention(mm) |
1400*720*1620 |
1400*720*1620 |
2200*720*1870 |
2200*720*1870 |
|
Passing width(mm) |
520 |
520 |
520 |
520 |
|
Max washing height(mm) |
420 |
420 |
420 |
420 |
|
Max washing Capacity{R/H) |
2000-3000 |
2000-3000 |
2000-3000 |
2000-3000 |
|
Water consumptionlliter/hour) |
300-350 |
300-350 |
300-350 |
300-350 |
|
Washing Tank Volum(L) |
105 |
105 |
105 |
105 |
|
Booster Volume(L) |
11 |
11 |
11 |
11 |
|
Vashing Temperature('c) |
50-60 |
50-60 |
50-60 |
50-60 |
|
Rinse Temperature("C) |
80-90 |
80-90 |
80-90 |
80-90 |
|
Water Supply Pressure(Mpa) |
0.25-0.4 |
0.25-0.4 |
0.25-0.4 |
0.25-0.4 |
|
Waterinlet diameter(in) |
½/20 |
½/20 |
½/20 |
½/20 |
|
Steam consumption(kg/h) |
/ |
50 |
/ |
50 |
|
Steam inlet pressure(Mpa) |
/ |
0.3-0.4 |
/ |
0.3-0.4 |
|
Steam inlet pipe diameter(in) |
/ |
G1"(1寸) |
/ |
G1"(1寸) |
|
Steam outlet pipe diameter(in) |
/ |
G3/4"(6分) |
/ |
G3/4"(6分) |
|
Tankheating(Kw) |
9 |
/ |
9 |
/ |
|
Booster heating(KW) |
26 |
/ |
26 |
/ |
|
Vash pump(Kw) |
1.5 |
1.5 |
1.5 |
1.5 |
|
Total load(KW |
36 |
2 |
42.8 |
9 |
|
Power reguirment |
3NPE/380V/50HZ |
3NPE/380V/50HZ |
3NPE/380V/50HZ |
3NPE/380V/50HZ |
