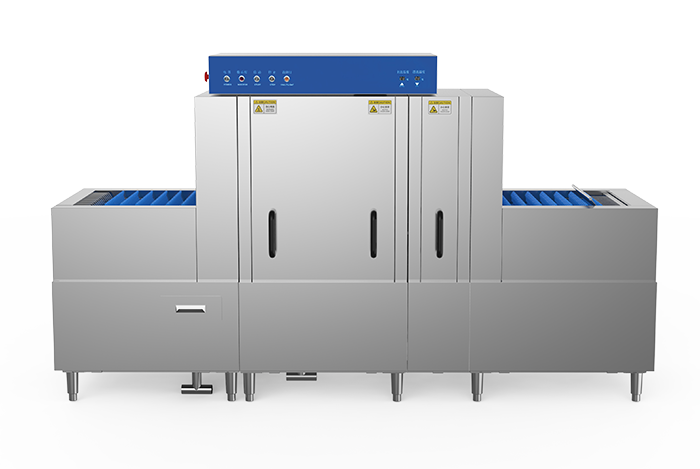

1.Continuous operation for high-volume dishwashing.
2.Multi-stage washing system ensures thorough and hygienic cleaning.
3.High-pressure spray arms remove grease and food residues effectively.
4.Energy-saving water circulation system reduces water consumption.
5.Stable conveyor structure ensures smooth and reliable transportation.
6.Industrial stainless steel body for long service life.

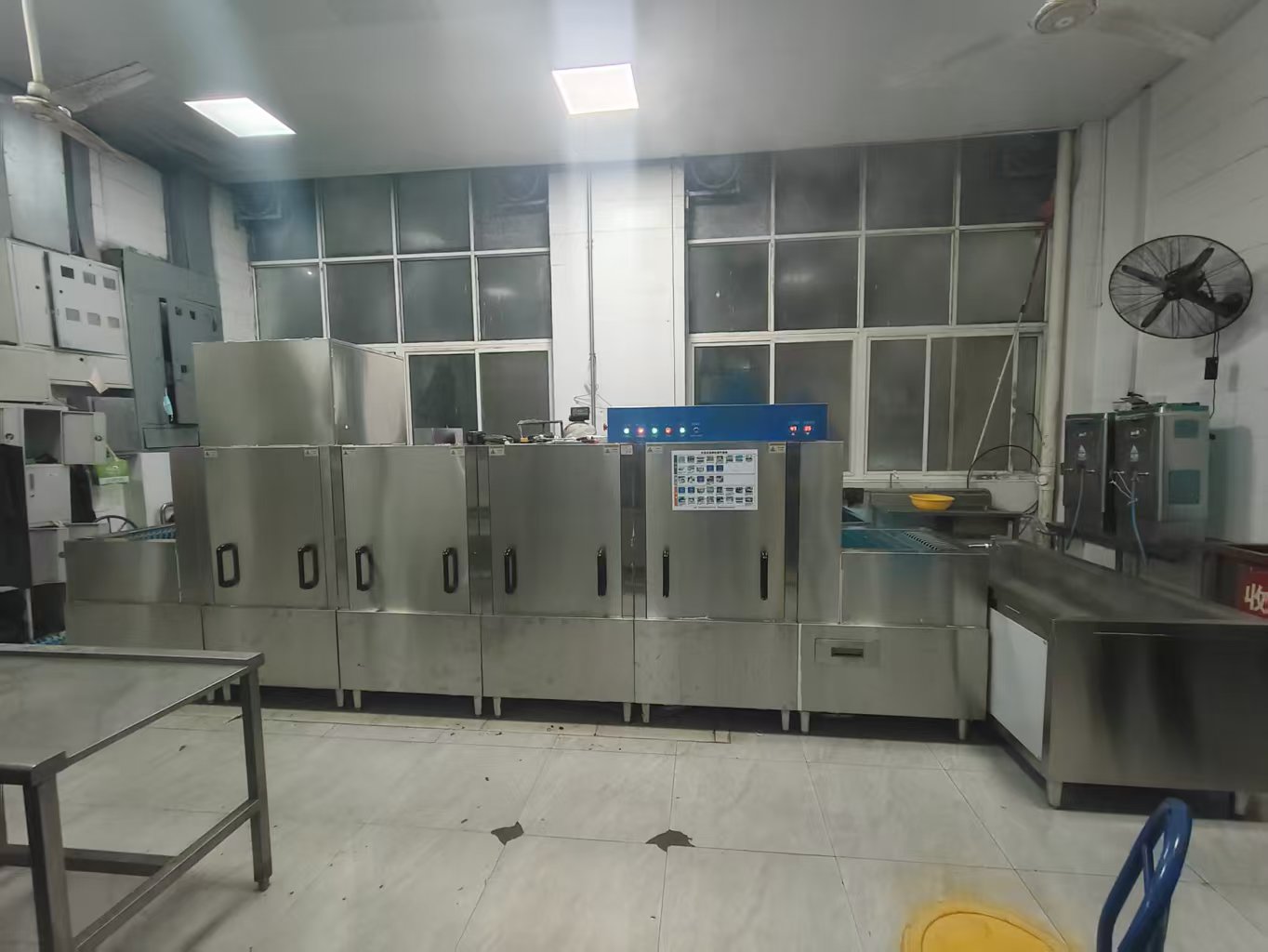

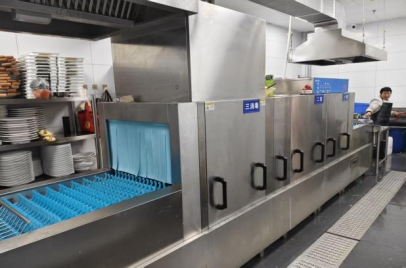

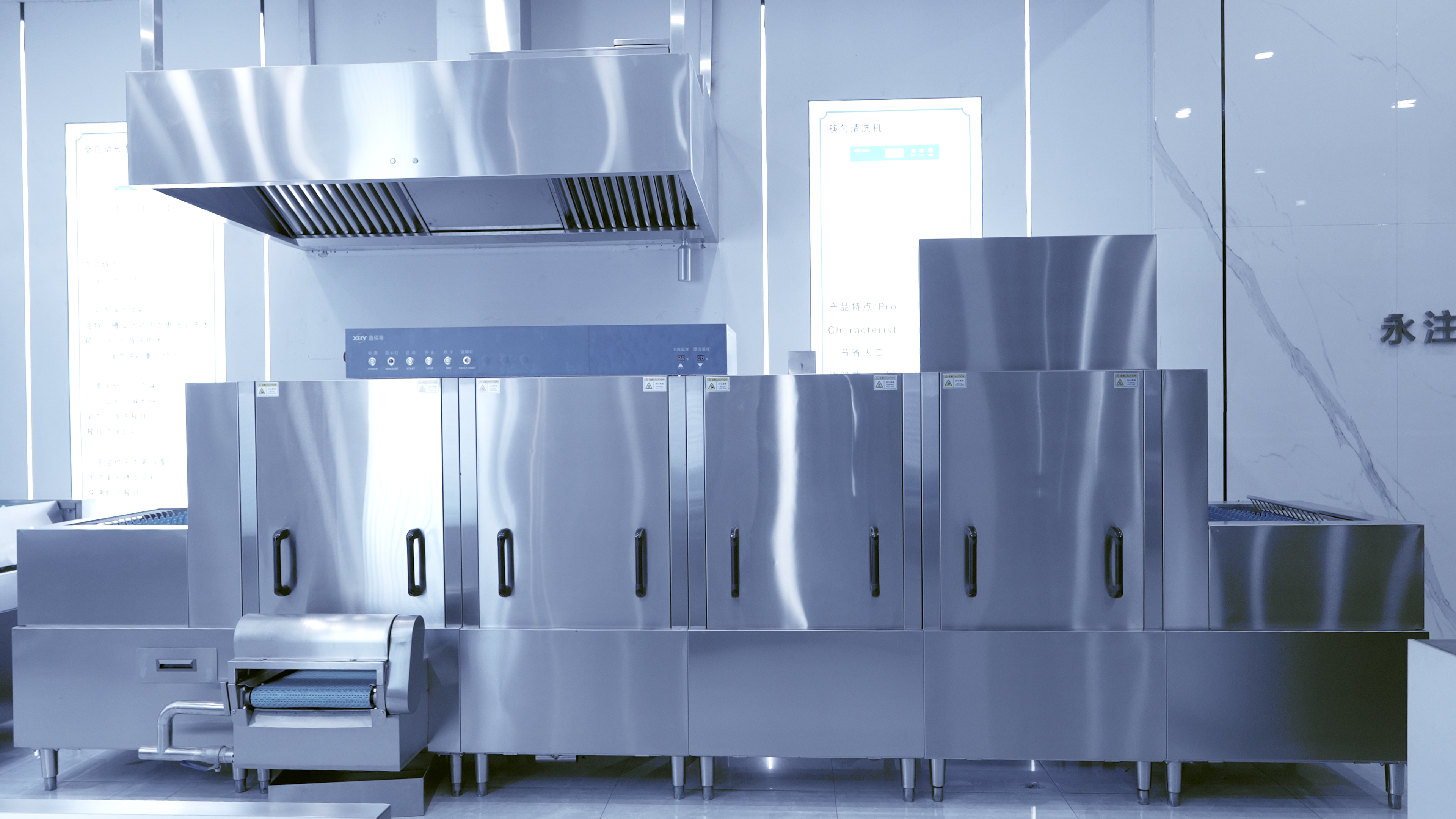

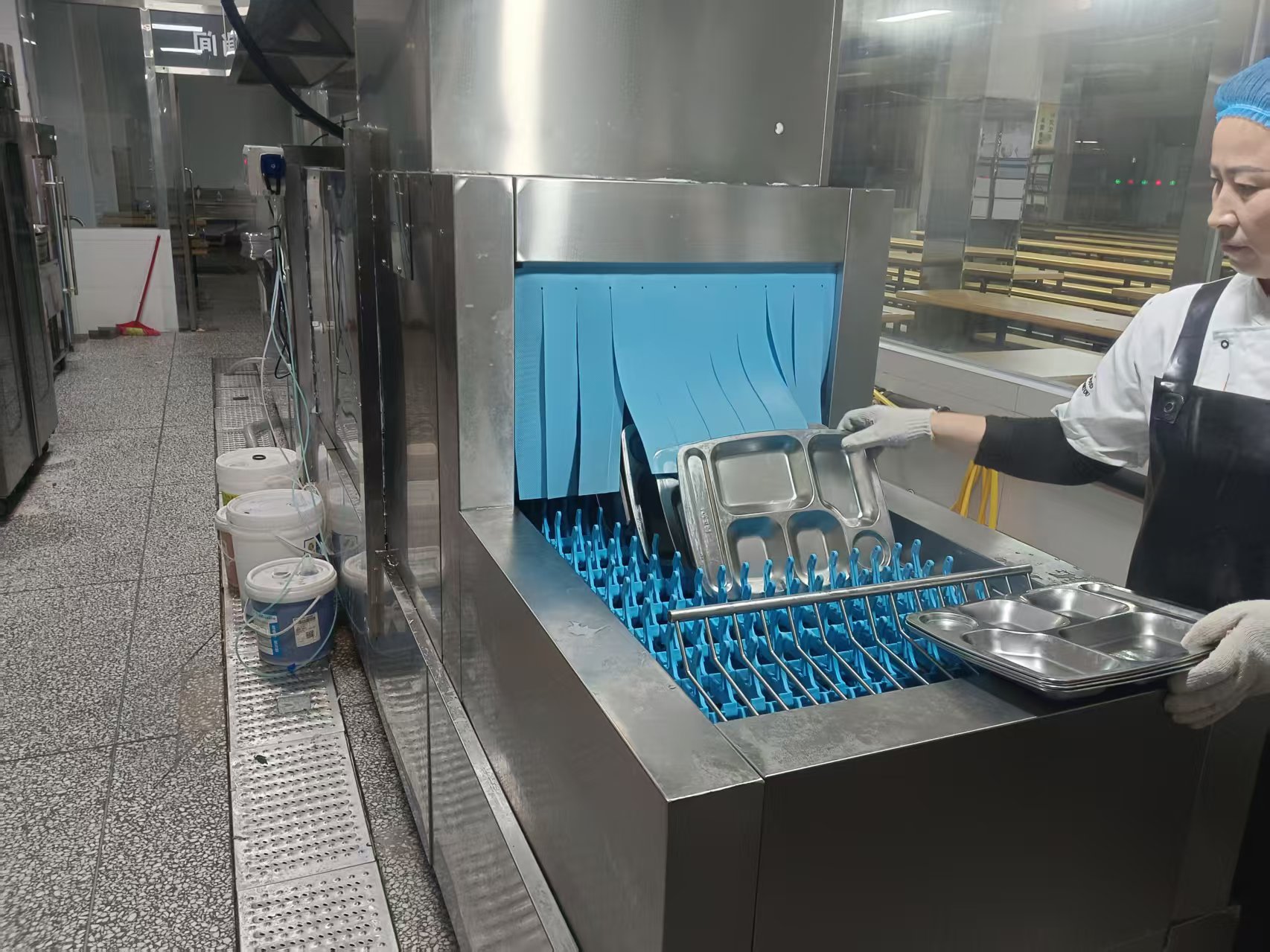

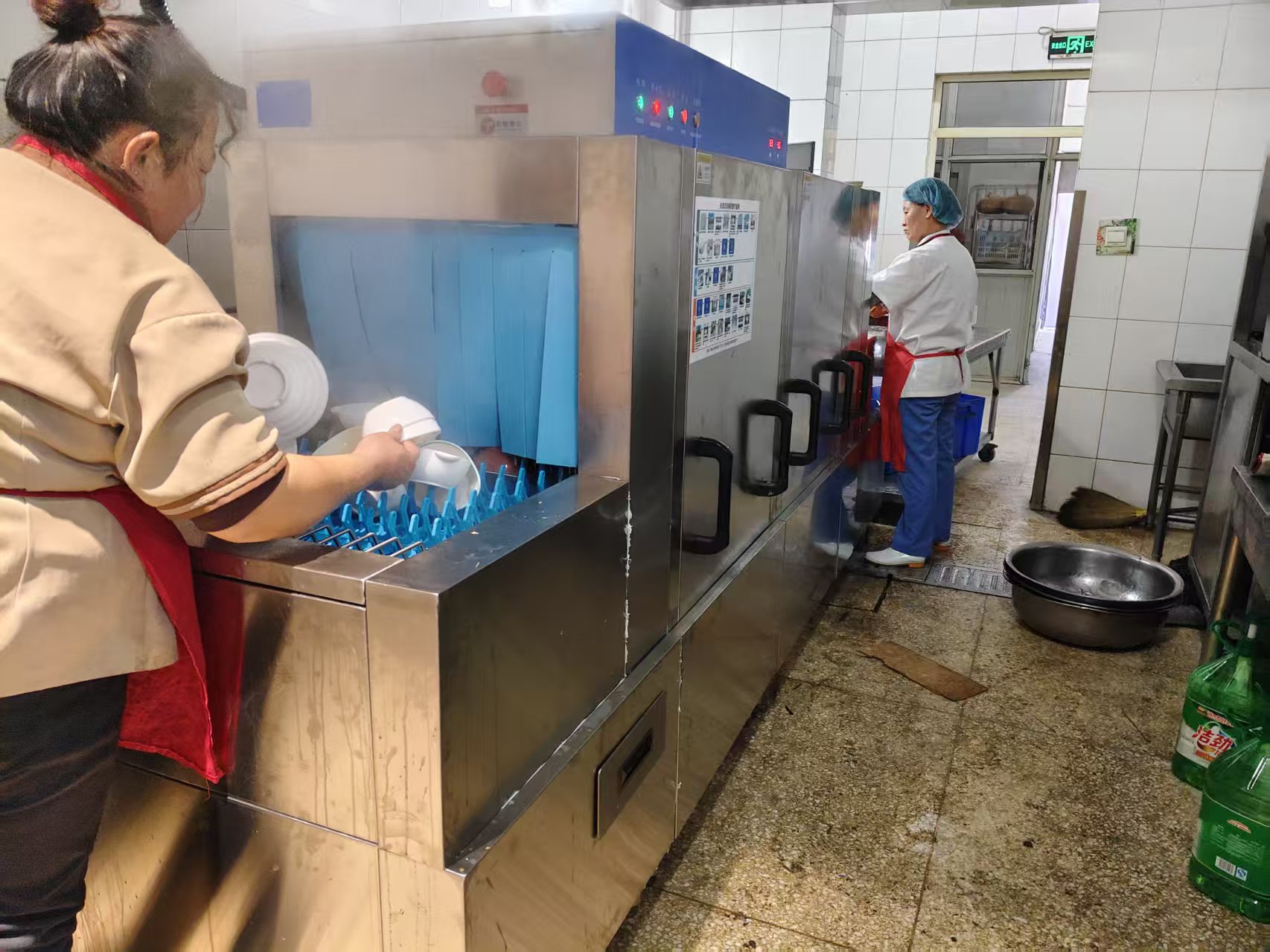

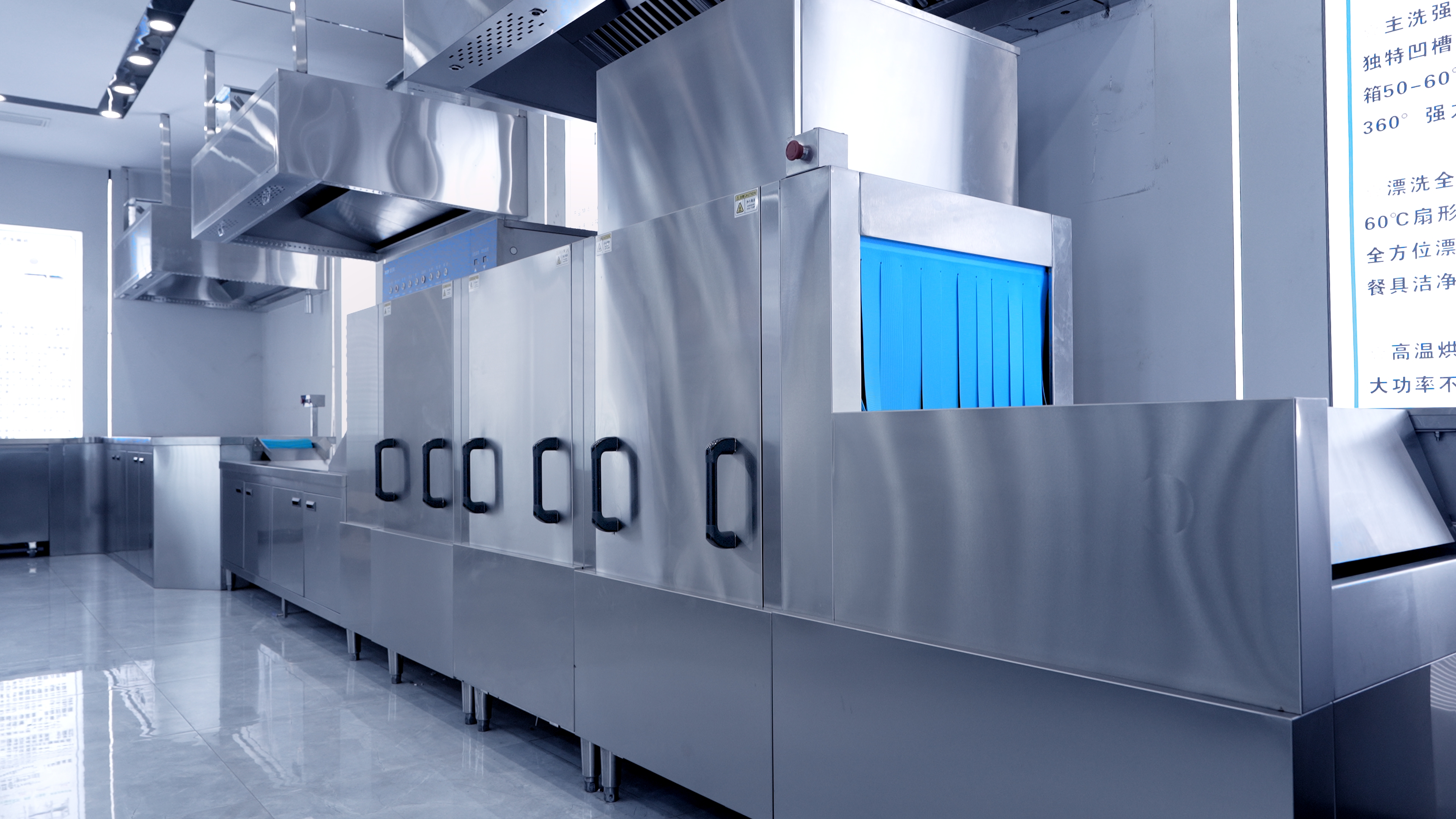

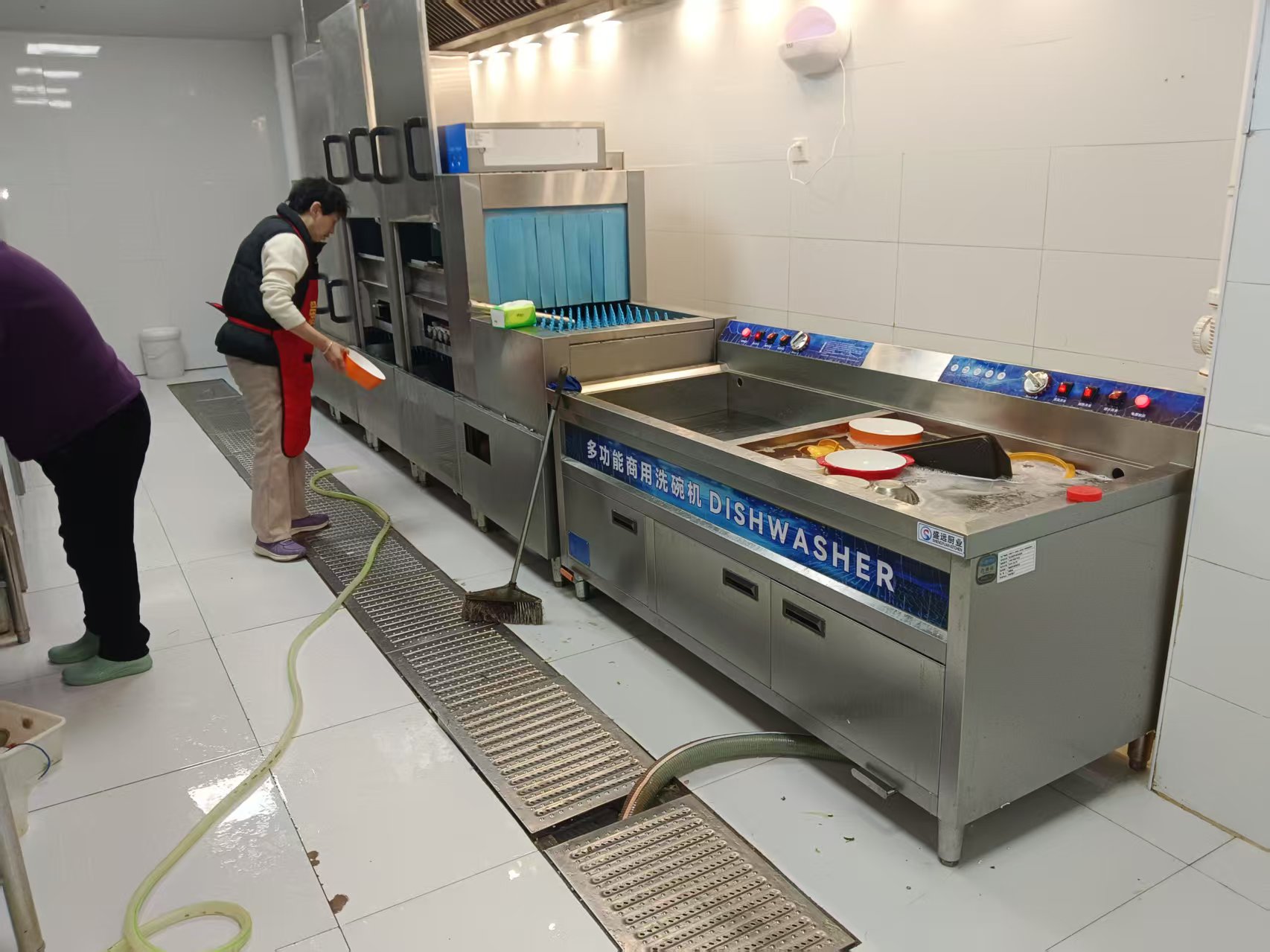

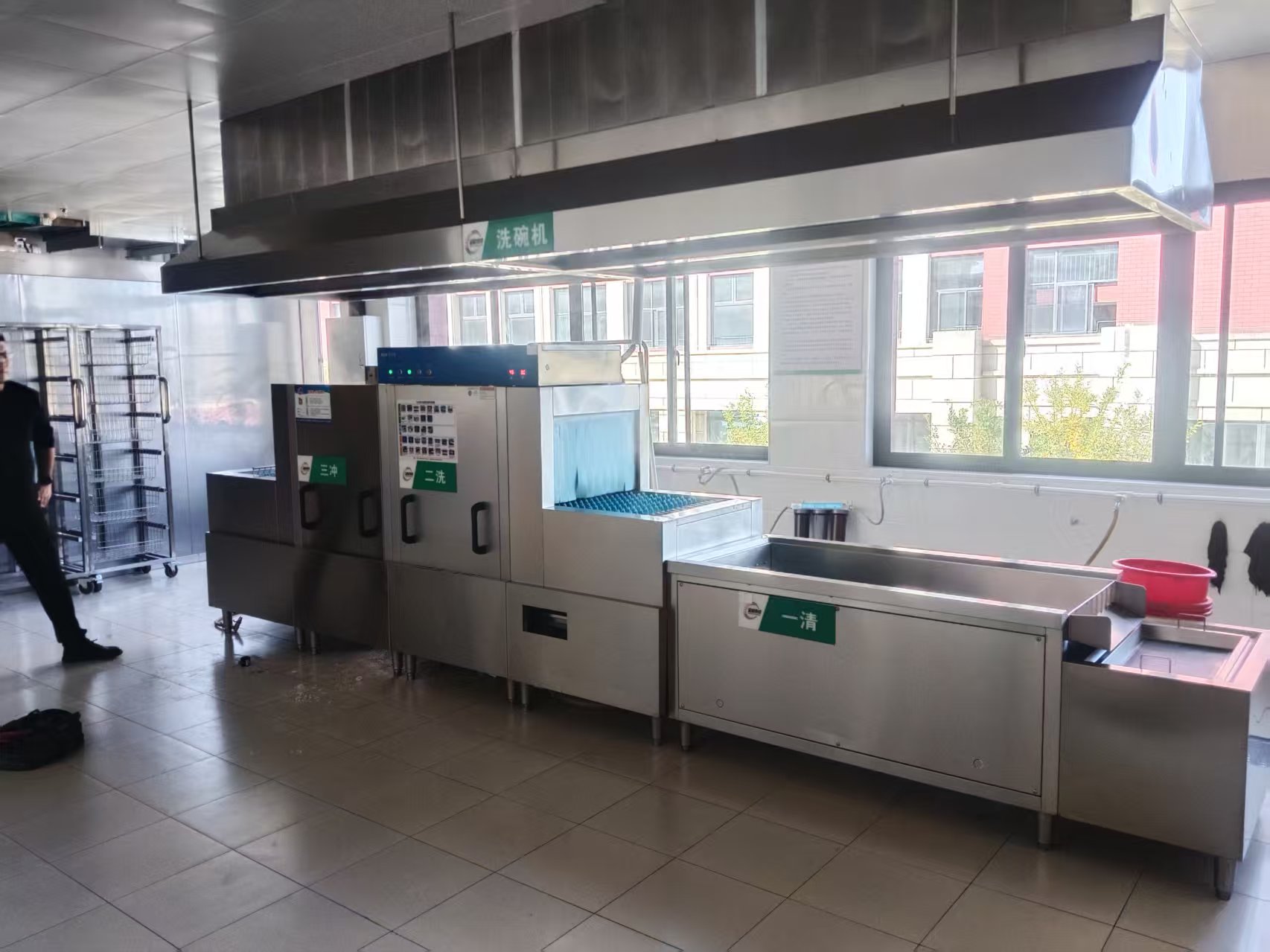

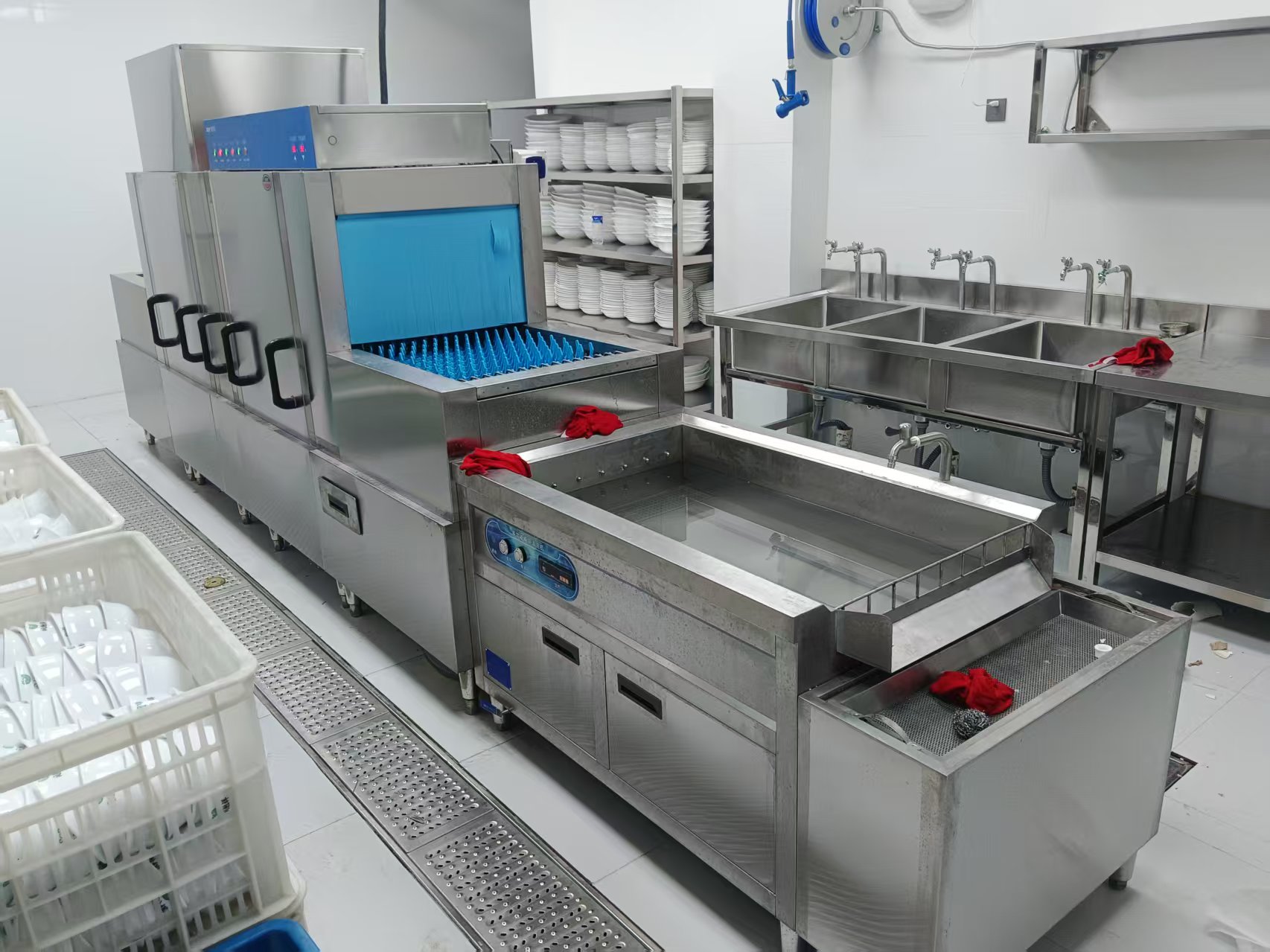

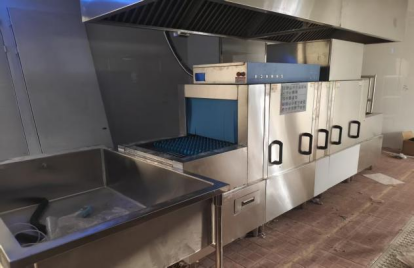

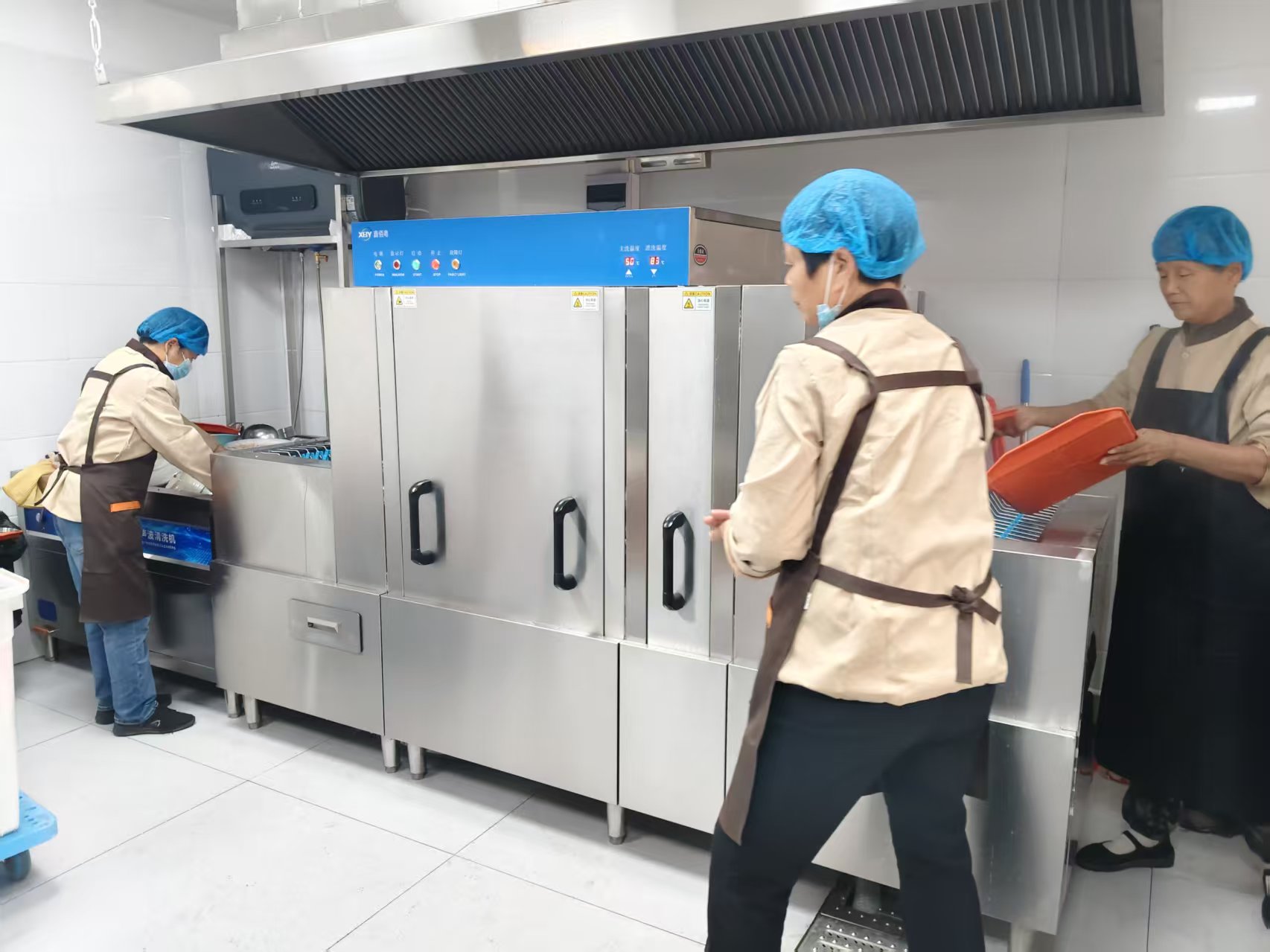

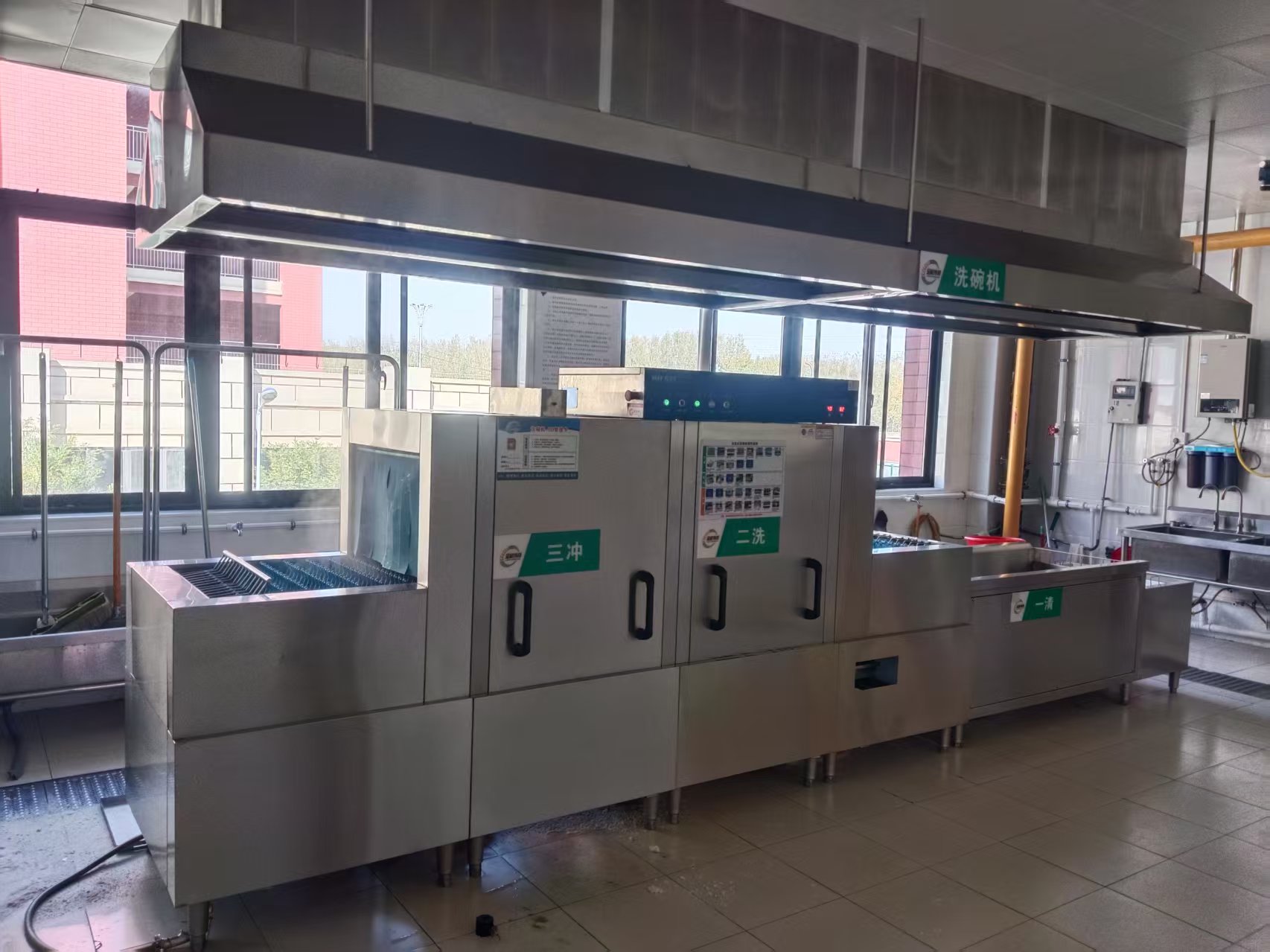

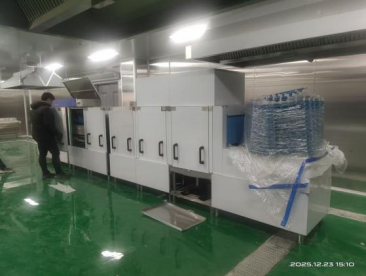

Tunnel dishwashers are suitable for washing plates, bowls, trays, cutlery, cups and glassware, providing stable and efficient cleaning for large volumes of tableware.
One main wash + one rinse configuration
Two main washes + one rinse + one dryer configuration
Two main washes + two rinses + two dryers configuration
We are a professional commercial dishwasher manufacturer with a 6,000 m² factory, equipped with laser cutting machines, CNC bending machines, punching machines and laser welding machines. With strict quality control and experienced technicians, each machine is fully tested before delivery to ensure stable performance and long service life. Our engineering team continuously improves product design based on market demand. We provide flexible OEM and ODM services, including logo, structure and function customization. Our products are exported worldwide, serving distributors and project partners with reliable after-sales support.

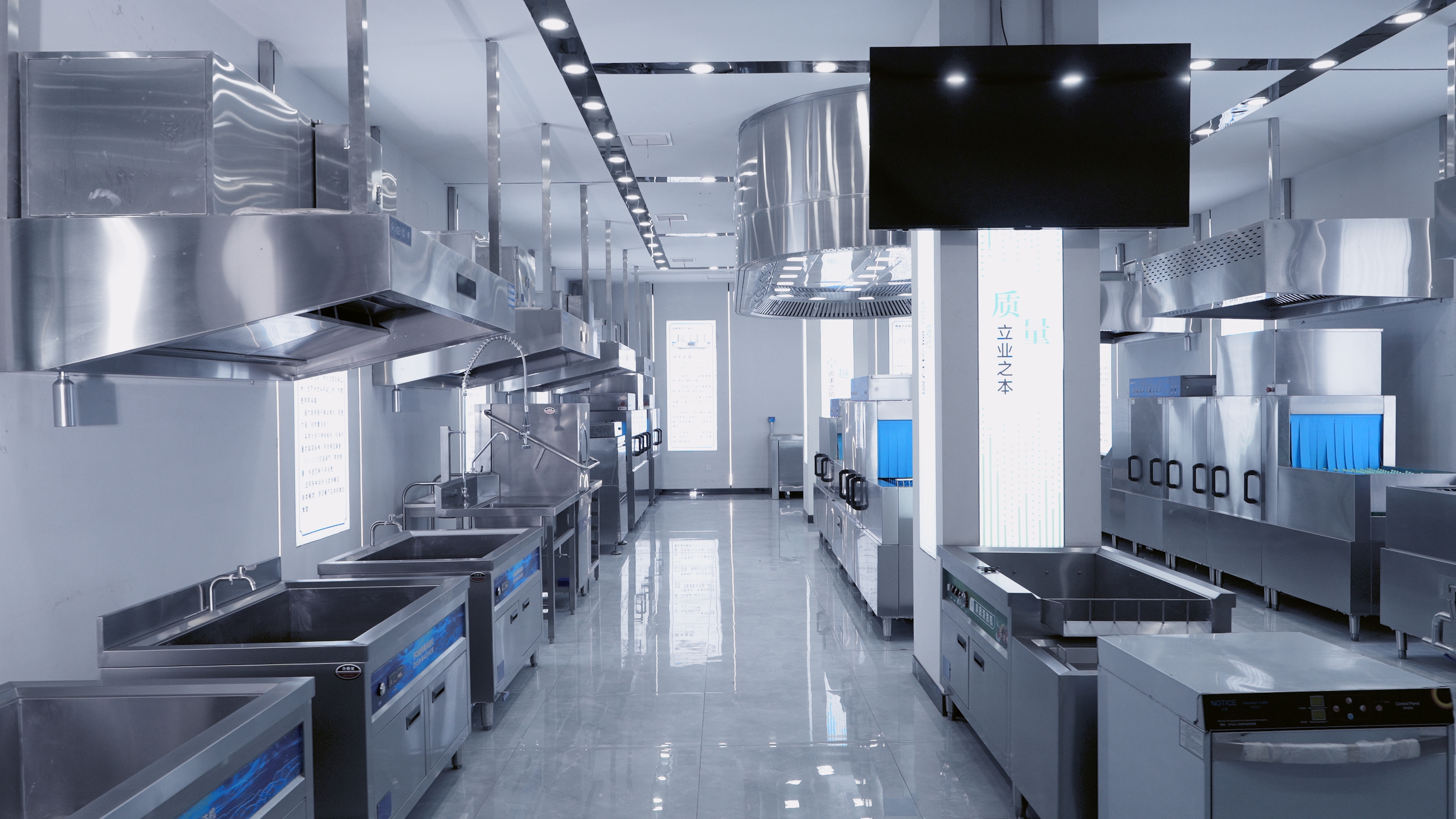

Commercial dishwasher factory pictures
Commercial dishwasher factory pictures
Commercial dishwasher factory pictures
We cooperate with experienced logistics partners to ensure stable transportation and smooth international delivery.
Export packaging
Export packaging
Export packaging
|
Model |
CL-2600 |
CL-3400 |
||
|
External Dimension(mm) |
2600*900*1650 |
3400*900*1650 |
||
|
Passing width(mm) |
620 |
620 |
||
|
Max washing height(mm) |
450 |
450 |
||
|
Max washing Capacity(R/H) |
3000-4800 |
3000-4800 |
||
|
Water consumption(liter/hour) |
300-350 |
300-350 |
||
|
Washing Tank Volume(L) |
105 |
105 |
||
|
Booster Volume(L) |
11 |
11 |
||
|
Washing Temperature(℃) |
50-60 |
50-60 |
||
|
Rinse Temperature(℃ ) |
80-90 |
80-90 |
||
|
Water Supply Pressure(Mpa) |
0.25-0.4 |
0.25-0.4 |
||
|
Water inlet diameter(in) |
½/20 |
½/20 |
||
|
Heating Mode |
Electric heating |
Steam heating |
Electric heating |
Steam heating |
|
Steam consumption(kg/h) |
/ |
50 |
/ |
50 |
|
Steam inlet pressure(Mpa) |
/ |
0.3-0.4 |
/ |
0.3-0.4 |
|
Steam inlet pipe diameter(in) |
/ |
G1"(1寸) |
/ |
G1"(1寸) |
|
Steam outlet pipe diameter(in) |
/ |
G3/4"(6分) |
/ |
G3/4"(6分) |
|
Tank heating(kw) |
9 |
/ |
9 |
/ |
|
Booster heating(kW) |
26 |
/ |
26 |
/ |
|
Wash pump(kw) |
2.2 |
2.2 |
||
|
Total load(KW) |
38 |
3.3 |
38 |
3.5 |
|
Power requirement |
380V/50HZ/3NPE |
380V/50HZ/3NPE |
||
|
Model |
CL-3700H |
CL-3700 |
||
|
External Dimension(mm) |
3700*900*1970 |
3700*900*1650 |
||
|
Passing width(mm) |
620 |
620 |
||
|
Max washing height(mm) |
450 |
450 |
||
|
Max washing Capacity(R/H) |
3000-4800 |
3000-4800 |
||
|
Water consumption(liter/hour] |
300-350 |
300-350 |
||
|
Washing Tank Volume(L) |
105 |
105 |
||
|
Booster Volume(L] |
11 |
11 |
||
|
Washing Temperature(℃) |
50-60 |
50-60 |
||
|
Rinse Temperature(℃ ) |
80-90 |
80-90 |
||
|
Water Supply Pressure(Mpa] |
0.25-0.4 |
0.25-0.4 |
||
|
Water inlet diameter(in) |
½/20 |
½/20 |
||
|
Heating Mode |
Electric heating |
Steam heating |
Electric heating |
Steam heating |
|
Steam consumption(kg/h) |
/ |
50 |
/ |
50 |
|
Steam inlet pressure(Mpa) |
/ |
0.3-0.4 |
/ |
0.3-0.4 |
|
Steam inlet pipe diameter(in) |
/ |
G1"(1寸) |
/ |
G1"(1寸) |
|
Steam outlet pipe diameter(in) |
/ |
G3/4"(6分) |
/ |
G3/4"(6分) |
|
Tank heating(kw) |
9 |
/ |
9 |
/ |
|
Booster heating(kW) |
26 |
/ |
26 |
/ |
|
Wash pump(kw) |
2.2 |
2.2 |
||
|
Total load(KW) |
51 |
16 |
49.5 |
5.5 |
|
Power requirement |
380V/50HZ/3NPE |
380V/50HZ/3NPE |
||
|
Model |
CL-4200H |
CL-4200CH |
||
|
External Dimension(mm) |
4200*900*1970 |
4210*900*1970 |
||
|
Passing width(mm) |
620 |
620 |
||
|
Max washing height(mm) |
450 |
450 |
||
|
Max washing Capacity(R/H) |
3000-4800 |
3000-4800 |
||
|
Water consumption(liter/hour] |
300-350 |
300-350 |
||
|
Washing Tank Volume(L) |
105 |
105 |
||
|
Booster Volume(L] |
11 |
11 |
||
|
Washing Temperature(℃) |
50-60 |
50-60 |
||
|
Rinse Temperature(℃) |
80-90 |
80-90 |
||
|
Water Supply Pressure(Mpa) |
0.25-0.4 |
0.25-0.4 |
||
|
Water inlet diameter(in) |
½/20 |
½/20 |
||
|
Heating Mode |
Electric heating |
Steam heating |
Electric heating |
Steam heating |
|
Steam consumption(kg/h) |
/ |
50 |
/ |
65 |
|
Steam inlet pressure(Mpa) |
/ |
0.3-0.4 |
/ |
0.3-0.4 |
|
Steam inlet pipe diameter(in) |
/ |
G1"(1寸) |
/ |
G1"(1寸) |
|
Steam outlet pipe diameter(in) |
/ |
G3/4"(6分) |
/ |
G3/4"(6分) |
|
Tank heating(kw) |
9 |
/ |
9 |
/ |
|
Booster heating(kW) |
26 |
/ |
26 |
/ |
|
Wash pump(kw) |
2.2 |
2.2 |
||
|
Total load(kW) |
52.8 |
17.6 |
51.5 |
16.3 |
|
Power requirement |
380V/50HZ/3NPE |
380V/50HZ/3NPE |
||
|
Model |
CL-5000H |
CL-5800H |
||
|
External Dimension(mm) |
5000*900*1970 |
5820*900*1970 |
||
|
Passing width(mm) |
620 |
620 |
||
|
Max washing height(mm) |
450 |
450 |
||
|
Max washing Capacity(R/H) |
3000-4800 |
3000-4800 |
||
|
Water consumption(liter/hour) |
300-350 |
300-350 |
||
|
Washing Tank Volume(L) |
105+105 |
105+105 |
||
|
Booster Volume(L) |
11 |
11 |
||
|
Washing Temperature(℃) |
50-60 |
50-60 |
||
|
Rinse Temperature(℃ ) |
80-90 |
80-90 |
||
|
Water Supply Pressure(Mpa) |
0.25-0.4 |
0.25-0.4 |
||
|
Water inlet diameter(in) |
½/20 |
½/20 |
||
|
Heating Mode |
Electric heating |
Steam heating |
Electric heating |
Steam heating |
|
Steam consumption(kg/h) |
/ |
50 |
/ |
65 |
|
Steam inlet pressure(Mpa) |
/ |
0.3-0.4 |
/ |
0.3-0.4 |
|
Steam inlet pipe diameter(in) |
/ |
G1"(1寸) |
/ |
G1"(1寸) |
|
Steam outlet pipe diameter(in) |
/ |
G3/4"(6分) |
/ |
G3/4"(6分) |
|
Tank heating(kw) |
9 |
/ |
9 |
/ |
|
Booster heating(kw) |
26 |
/ |
26 |
/ |
|
Wash pump(kw) |
2.2+2.2 |
2.2+2.2 |
||
|
Total load(kw) |
62 |
19 |
75 |
31.8 |
|
Power requirement |
380V/50HZ/3NPE |
380V/50HZ/3NPE |
||
